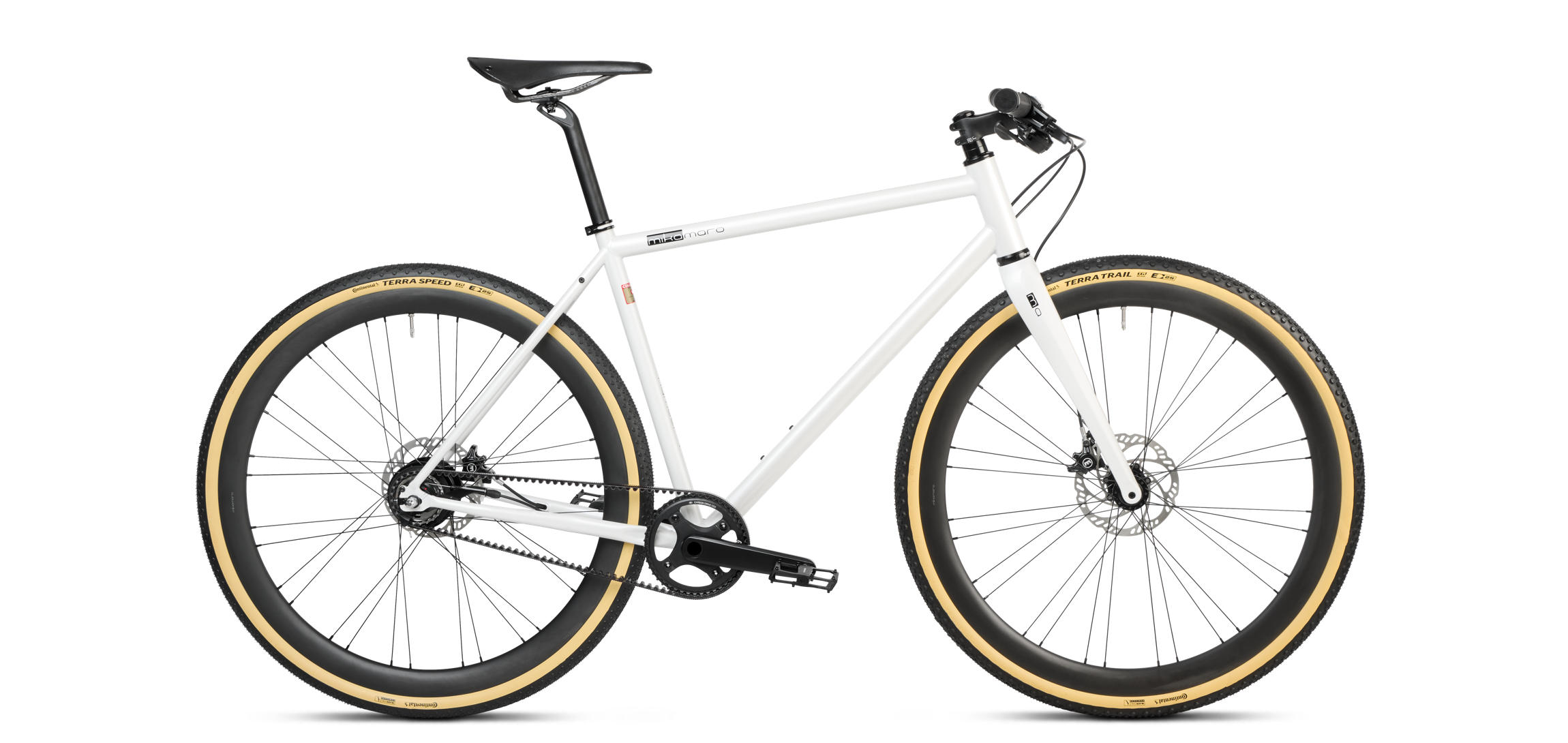

Gravel Bike Gates Carbon Drive Belt white mikamaro

Anniversary Edition Gravel Bike

€4.199,00

incl. VAT plus shipping costs

Limited to only 11 bikes – our Gravel Bike is now available as Anniversary Edition in the color “mother of pearl white”.

Graveling with belt drive? With us even more so! Our gravel bike with flatbar is a typical mikamaro bike. Seamless design and outstanding quality guarantee lots of riding fun off road. An ultra-light frame with carbon fork, wide Aero carbon rims, Magura disc brakes, a Brooks carbon saddle and much more make every heart beat faster. Thanks to Gates belt drive, riding a gravel bike has never been so silent. And at under 10kg, it’s probably the lightest belt-drive gravel bike on the market.

Important: Only 11 bikes are available.

Clear selection
SKU: N/A Categories: , Tags: , , , , , ,

Description

Our frame sizes are suitable for almost any body size.

Recommendations Gravel Bike

medium – 46 cm = 1.60 m – 1.75 m
large – 50.5 cm = 1.75 m – 1.85 m
extra large – 55 cm = from 1.85 m

Size 46 cm – head tube angle: 71° – seat tube angle: 74° – top tube length horizontal: 575 mm – seat tube length: 460 mm – fork leading: 47 mm – stem: 90 mm
Size 50.5 cm – head tube angle: 71° – seat tube angle: 74.0° – top tube length horizontal: 595 mm – seat tube length: 505 mm – fork advance: 47 mm – stem: 90 mm
Size 55 cm – head tube angle: 71° – seat tube angle: 74.0° – top tube length horizontal: 625 mm – seat tube length: 550 mm – fork advance: 47 mm – stem: 90 mm

Product Highlights

  • Only 11 bikes, one of a kind (1-11 signed) – Anniversary Edition
  • Color: mother of pearl white
  • Super lightweight and hand-welded frame made of Columbus Life tubes, triple butted
  • Columbus carbon fork
  • Completely internally routed cables and wires
  • Magura flat mount hydraulic disc brakes
  • Super lightweight mikamaro carbon wheelset with parallel spoke lacing, optimized for wide tires
  • Brooks C13 carbon saddle
  • Continental Terra Trail and Terra Speed tires – TR, 40mm
  • Maintenance free drivetrain: Gates Carbon Drive with 11 speed Shimano Alfine gear hub
  • Super light, only about 9.8 kg (depending on frame size, tubeless, without pedals)
  • 100% assembled in Germany

Additional information

Frame and Fork

Columbus Life triple butted – Omnicrom alloy, handmade welded, Columbus Futura Carbon fork
Headset

Columbus 1 1/4 – maintenance free bearing
Drive

Gates Carbon Drive CDX – 46T, 24T
Gears

Shimano Alfine 11-Speed
Crank

mikamaro Gravel – 170mm
Bottom Bracket

FSA T47
Stem

mikamaro Gravel – 80mm, 6061 T6 Aluminum
Handelbar

mikamaro Gravel, ultralight – 720mm, 6061 T6 Aluminum
Saddle

Brooks Cambium C13 – Carbon
Seatpost

mikamaro – 400mm, 6061 T6 Aluminum
Grips

Brooks Cambium
Wheels

mikamaro Aero Gravel carbon rims – 40mm, 25mm inner width, hookless, Tubeless ready, mikamaro 32H front hub with 12×100 thru axle, Shimano Alfine 11-Speed 32H rear hub, parallel spoke lacing, Sapim D-Light spokes, Sapim Aluminum nippels
Brakes

Magura MT4 FM – 160mm rotor
Tires

Continental Terra Trail (front) and Continental Terra Speed (rear) – Tubeless ready, 40mm
Pedals

mikamaro Gravel – CNC machined, maintenance free bearing
Weight

approx. 9.8 kg (depending on frame size, tubeless, without pedals)
